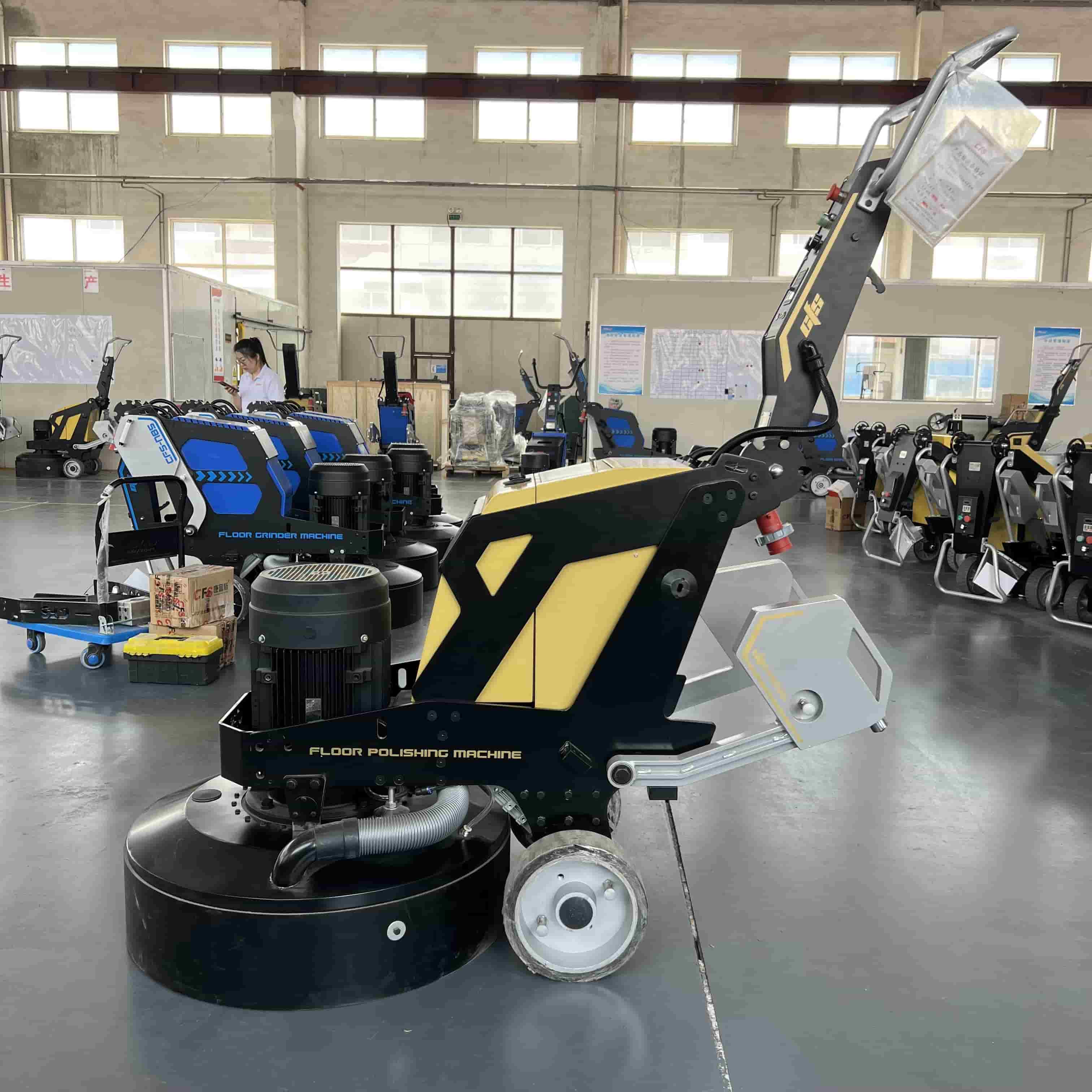

Concrete Floor Polishing Grinder Machine
1. Intelligent remote control planetary disc grinder reduces labor intensity and intelligent control of forward and backward.
2. The four head planetary grinding head rotates in op- posite direction and the large plate rotates clockwise to evenly distribute the cutting force on the ground and improve the grinding efficiency.
3. The three-stage grinding counterweight ensures the working speed of the grinder and the stability of grinding pressure, so as to realize accurate grinding.
4. The grinding speed and travel speed can be freely adjusted to achieve the same grinding effect for different operations.
5. It can be used with industrial vacuum cleaner to realize dust-free grinding of dry and wet floors.
Project | CFS-GDR850 |
Power Supply | 380V-440V |
Electric Machinery | 15Kw |
Frequency | 50/60Hz |
Rated Current | 30A |
Frequency | 20Hp |
Grinding Width | 855Mm |
Speed | 300-1800Rpm/min |
Millstone | 315Mm*4 |
Walking Speed | 0-20m/min |
Net Weight | 600Kg |
Size | GB 3*10+1*6 |
Package Size | 1575*880*1125 |
1. Opposite rotation of four head planetary grinding head
2. Light control button
Walking button Change walking speed
Forward and backward control button, change the direction of travel
3. Power switch
Grinding speed adjustment knob, adjust chassis rotation speed
Chassis work start button
Control panel
Light control button
Turn the button to change the walking speed
Forward and back control buttons, change the direction of walking
Main power switch
Grinding speed adjustment knob, adjust grinding speed
grinder work start button
Scram button
Concrete Floor System is a technology co., LTD., which integrates R&D, design, production an sales of concrete floor machinery,drilling and toughening materials, and floor grinding tools. For tens thousands of projects to provide integrated construction solutions, won the trust of our customers. And with many of the world's top 500 enterprises to establish a long-term stable cooperative relations.
Concrete Floor System takes it as its duty to escort quality builders and takes the realization of quality, healthy and dust free floor as its enterprise development goal. CFS focuses on providing services for concrete floor system. CFS keeps developing and innovating floor materials and grinding system, and has won the trust of our customers.
Concrete Floor System has a modern manufacturing base, establish a perfect living standard, adhering to the "first-class technical strength, first-class product quality, first-class after-sales service" spirit, strict requirements on themselves, to provide customers with high standards of products, for the output of quality floor to build a solid foundation.
Crystal diamond quality, solid and dust-free, CFS diamond floor.
